ボタンを押したら、新しい画面が開くようにする。(インテントで画面遷移)
新しく画面が開くことは、画面遷移というみたいです。
インテントというものを使って画面遷移をするようです。
やることが沢山でした。
①新しいレイアウト(xmlファイル)を作る
②新しいアクティビティを作る
③Manifestに新しいアクティビティを記入する
④ボタンの画面遷移のイベントを作る
①新しいレイアウト(xmlファイル)を作る
res>layoutに新しいxmlファイルを作成します。
layoutを右クリック→新規→Android XMLファイルを選択します。
ファイルのところに名前を入力し、完了をクリックします。
今回は「sub.xml」とし、内容は↓のようにしました。
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:background="#ffffff" >
<TextView
android:id="@+id/text1"
android:layout_width="fill_parent"
android:layout_height="wrap_content"

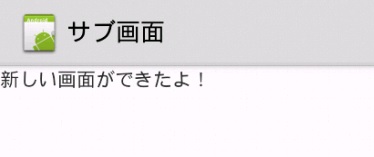

android:text="新しい画面ができたよ!" />
</LinearLayout>
②新しいアクティビティを作る
src>アプリ名の中に、新しいアクティビティを作成します。(すでにメインのアクティビティがあるのと同じ場所です)
アプリ名を右クリック→新規→クラスを選択します。
そうすると、新規javaクラスを作成しますと出るので、名前のところに新しいアクティビティのファイル名を入力し、完了をクリックします。
今回のファイル名は「SubActivity」とし、中身は↓のようにしました。
public class SubActivity extends Activity implements OnClickListener {
/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.sub);
}
public void onClick(View v) {
// TODO 自動生成されたメソッド・スタブ
}}
①で作成したレイアウトにするために、「setContentView(R.layout.sub);」となっています。
③Manifestに新しいアクティビティを記入する
res>AndroidManifest.xmlに新しく作ったアクティビティを書きます。
新しくアクティビティを作成したらここに記入しいないと、画面遷移ができません。
忘れててはまりました。。。
AndroidManifest.xmlに書き足すのは、
<activity
android:name="新しいアクティビティの名前"
android:label="タイトル">
</activity
です。タイトルはタイトルバーに表示されます。
AndroidManifest.xml全部だと、
<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="jp.hews.helloandroid"
android:versionCode="1"
android:versionName="1.0" >
<uses-sdk android:minSdkVersion="14" />
<application
android:icon="@drawable/ic_launcher"
android:label="@string/app_name" android:theme="@android:style/Theme.Holo.Light">
<activity
android:label="@string/app_name"
android:name=".●●●Activity" >
<intent-filter >
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity
android:name="SubActivity"
android:label="サブ画面">
</activity>
</application>
</manifest>
④ボタンの画面遷移のイベントを作る
メインのアクティビティで、ボタンを押したら新しいアクティビティが開くようにします。
画面遷移は、
Intent intent = new Intent();
intent.setClass(getApplicationContext(), 新しいアクティビティの名前.class);
startActivity(intent);
で出来ます。

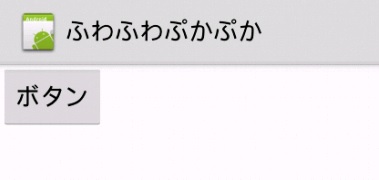

main.xmlは、ボタン1つの画面にしました。
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="fill_parent"
android:layout_height="fill_parent"
android:orientation="vertical"
android:background="#ffffff">
<Button
android:id="@+id/button1"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="ボタン" />
</LinearLayout>
Activityは、
public class ●●●Activity extends Activity implements OnClickListener {
Button button1;
/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
button1 = (Button)findViewById(R.id.button1);
button1.setOnClickListener(this);
}
public void onClick(View v) {
if(v == button1){
Intent intent = new Intent();
intent.setClass(getApplicationContext(), SubActivity.class);
startActivity(intent);}
}}
こうなりました。
これで画面遷移ができるようになりました。
→
